1D Regression

Source: examples/regression_1d/main.py

Overview

A small MLP learns to fit a noisy 1D scalar function. The target is a smooth non-linear curve with additive Gaussian noise. The example shows the full training loop pattern: dataset → dataloader → model → optimizer → loss → backward → step.

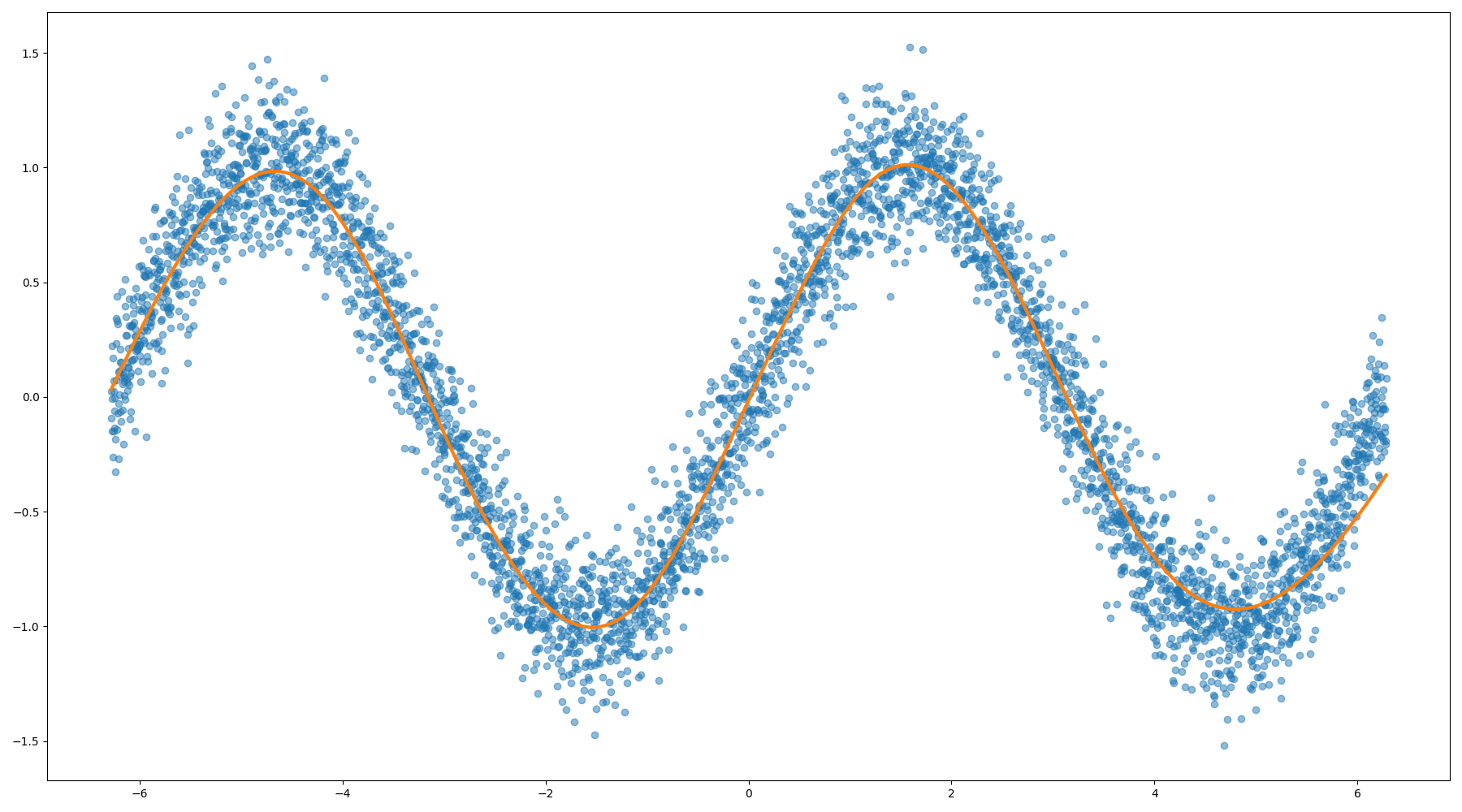

The learned fit is optionally visualised with matplotlib:

../_images/regression_1d_fit.png

Running

python -m examples.regression_1d.main          # defaults
python -m examples.regression_1d.main --help   # see all options

Selected options:

  • --num-steps — training steps (default 3 000)

  • --hidden-sizes 64 64 — MLP hidden layer widths

  • --activation tanh — activation (relu / tanh / sigmoid)

  • --optimizer adamw — sgd or adamw

  • --snr-db 12 — signal-to-noise ratio of the synthetic data

Code walkthrough

Dataset

The dataset generates noisy samples of a fixed smooth function:

dataset = RegressionDataset(num_examples=4096, snr_db=12)
# dataset.data: Array (N, 1), dataset.targets: Array (N, 1)

Model and optimiser

nn.MLP stacks Linear layers with a chosen activation:

net = nn.MLP(input_dim=1, hidden_sizes=[64, 64], output_dim=1, activation="tanh")
optimizer = npg.optim.AdamW(net.parameters())

Training loop

for step in range(num_steps):
    x, y = next(iter(train_dataloader))
    optimizer.zero_grad()
    out = net(x)
    loss = nn.mse(out, y)
    loss.backward()
    optimizer.step()

Evaluation with no_grad

The @npg.no_grad() decorator prevents any computation graph from being built during evaluation, saving memory and time:

@npg.no_grad()
def estimate_loss(num_batches, loader):
    losses = [nn.mse(net(x), y).item() for x, y in ...]
    return npg.mean(npg.array(losses)).item()
